Waveforms

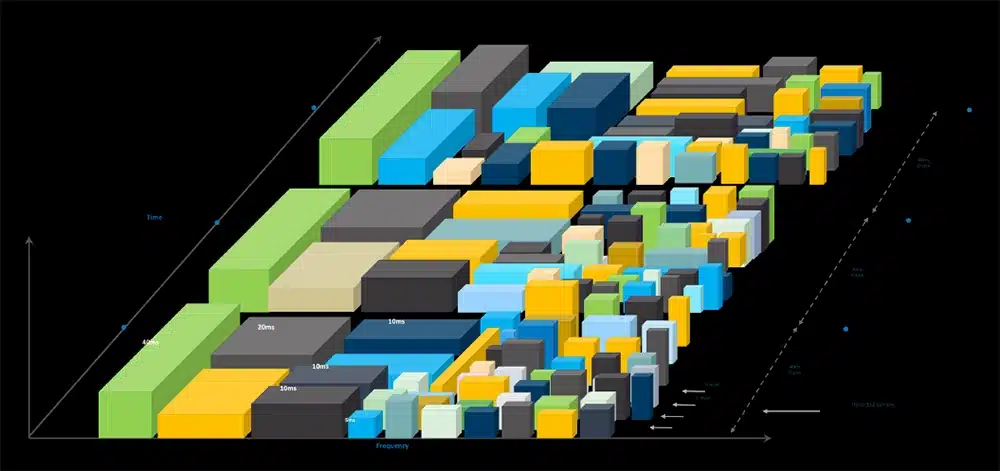

Mx-DMA MRC: Advanced Return Waveform

• Self-organizing waveform delivers SCPC-like efficiency with real-time bandwidth allocation up to 100 Msps, achieving up to 300 Mbps
• Simplifies traffic management, ensuring top QoE on a multi-service platform.
• Scales to support thousands of terminals and diverse applications on a single multi-carrier demodulator

Key Features

• Dynamic Bandwidth Allocation: Redistributes resources 25x per second for optimal efficiency and low latency
• Adaptive Payload Length: Matches payloads to application demands for efficiency
• Unsolicited Logon: Dynamically activates modems to avoid idle capacity use
• Self-Organizing Link: Real-time bandwidth allocation eliminates preset carrier planning
• MODCOD Efficiency: Operates with 34 MODCODs up to 64APSK and 5% roll-off

TCO Savings

• Space Segment: Cuts bandwidth and power costs
• Ground Segment: Optimizes BUC with Carrier Regrowth Control for resource efficiency

DVB-S2X

Intuition supports DVB-S2X, boosting satellite link efficiency by up to 51% (plus 20% with wideband). Ideal for high-throughput applications like trunking, broadcast, and mobility, it reduces complexity and power use with time-slicing and virtual carrier subdivisions.

Key Features

• MODCODs up to 256APSK, smaller roll-offs (5%), and VL-SNR for mobility
• Wideband support (125 MHz) and up to 2x bandwidth efficiency
• Enhances RF/antenna efficiency and supports finer FEC granularity

Adaptive Coding and Modulation (ACM)
ACM dynamically adjusts signal parameters in real-time, optimizing modulation for up to 50% efficiency gains and doubling throughput.

Benefits

• Avoid worst-case design scenarios and cut OPEX
• Flexibly support diverse terminal sizes and business models
